Genie plugin

Integrates Databricks AI/BI Genie spaces into your AppKit application, enabling natural language data queries via a conversational interface.

Key features:

  • Named space aliases for multiple Genie spaces
  • SSE streaming with real-time status updates
  • Conversation history replay with automatic reconnection
  • Query result attachment fetching
  • Genie's charts, served as PNG images
  • Agent mode: the agent's reasoning, streamed as it works, and the charts it draws
  • On-behalf-of (OBO) user execution

Basic usage

import { createApp, genie, server } from "@databricks/appkit";

await createApp({
  plugins: [
    server(),
    genie(),
  ],
});

Configuration options

OptionTypeDefaultDescription
spacesRecord<string, string>{ default: DATABRICKS_GENIE_SPACE_ID }Map of alias names to Genie Space IDs
agentsRecord<string, string>{}Map of alias names to Genie Space IDs used in agent mode
timeoutnumber120000Timeout in ms for a chat message or an agent turn. Set to 0 for indefinite

Space aliases

Space aliases let you reference multiple Genie spaces by name. The alias is used in API routes and the frontend <GenieChat> component:

genie({
  spaces: {
    sales: "01ABCDEF12345678",
    support: "01GHIJKL87654321",
  },
});

If you omit spaces, the plugin reads DATABRICKS_GENIE_SPACE_ID from the environment and registers it under the default alias.

Agent mode

Genie agent mode answers like an agent: it reasons about the question, runs queries, and draws charts. Register a space under agents instead of spaces to use it in agent mode. Any Genie space can be used as an agent:

genie({
  spaces: { sales: "01ABCDEF12345678" },
  agents: { analyst: "01ABCDEF12345678" },
});

An agent alias works with the same routes, the same sendMessage and getConversation exports, and the same <GenieChat alias="analyst" /> component as a chat space. The difference is in what it returns:

  • reasoning events stream the agent's reasoning while it works. The completed message carries the steps in reasoning.
  • Visualizations are always turned on. The charts the agent draws arrive as viz attachments, like a chat space's charts (see Get a visualization).

An alias can be either a chat space or an agent, not both. To use one space both ways, give it two aliases, as in the example above. Conversations don't carry over between the two modes.

Agent mode uses the Genie agent API (/api/2.0/genie/agents/{id}/responses and /api/2.0/genie/agents/{id}/conversations/{id}/items), which the Databricks SDK doesn't cover yet.

Finding your Genie Space ID

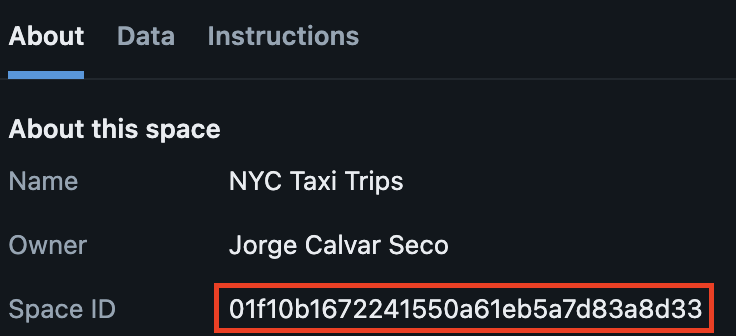

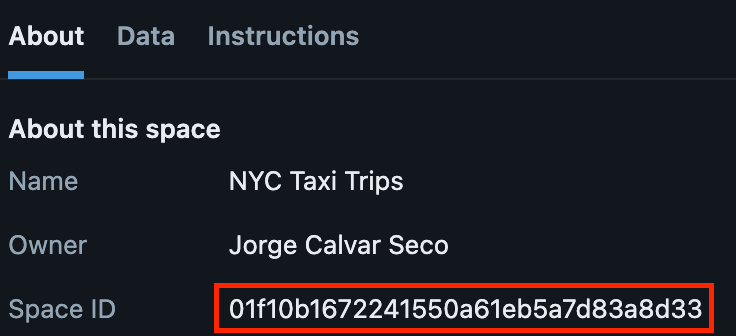

You can find the Space ID from the About tab on your Genie space page in Databricks:

Genie Space ID in the About tab

Environment variables

VariableDescription
DATABRICKS_GENIE_SPACE_IDDefault Genie Space ID (used when spaces config is omitted)

HTTP endpoints

The genie plugin exposes these endpoints (mounted under /api/genie):

  • POST /api/genie/:alias/messages — Send a message to a Genie space (SSE stream)
  • GET /api/genie/:alias/conversations/:conversationId — Replay conversation history (SSE stream)
  • GET /api/genie/:alias/conversations/:conversationId/messages/:messageId/attachments/:attachmentId/visualization — Download a chart as a PNG

Send a message

POST /api/genie/:alias/messages Content-Type: application/json { "content": "What were total sales last quarter?", "conversationId": "optional-existing-conversation-id" }

The response is an SSE stream that emits these event types:

Event typeDescription
message_startConversation and message IDs assigned
statusProcessing status updates (e.g. ASKING_AI, EXECUTING_QUERY)
reasoningAgent mode only: one step of the agent's reasoning
message_resultFinal message with text and query attachments
query_resultTabular data for a query attachment
errorError details

Get conversation history

GET /api/genie/:alias/conversations/:conversationId

Returns an SSE stream of message_result and query_result events for all messages in the conversation.

Get a visualization

GET /api/genie/:alias/conversations/:conversationId/messages/:messageId/attachments/:attachmentId/visualization

Returns the PNG Genie rendered for a viz attachment, so it can be used directly as an <img> source. Use the attachmentId of the viz attachment, not its queryAttachmentId. The message must be completed.

Chat spaces and agents both return viz attachments when Genie draws a chart. For a query with a viz attachment, GenieChat shows Genie's chart in place of the chart it would otherwise infer from the query result.

Programmatic access

The plugin exports sendMessage and getConversation for server-side use:

const AppKit = await createApp({
  plugins: [server(), genie({ spaces: { demo: "space-id" } })],
});

// Stream events
for await (const event of AppKit.genie.sendMessage("demo", "Show revenue by region")) {
  console.log(event.type, event);
}

// Fetch full conversation
const history = await AppKit.genie.getConversation("demo", "conversation-id");

Frontend components

The @databricks/appkit-ui package provides ready-to-use React components for Genie:

GenieChat

A full-featured chat interface that handles streaming, history, and reconnection:

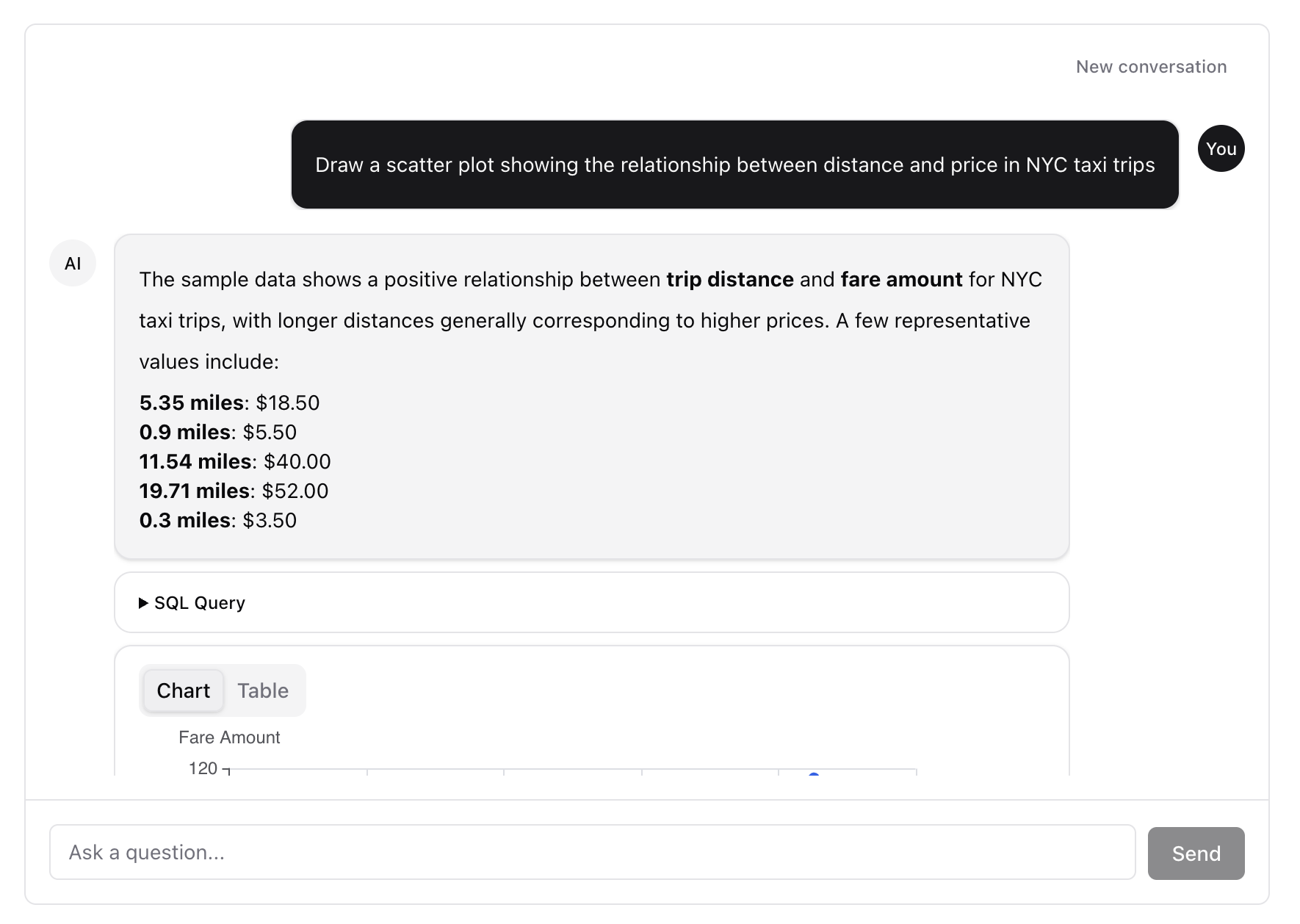

GenieChat component

import { GenieChat } from "@databricks/appkit-ui/react";

function GeniePage() {
  return (
    <div style={{ height: 600 }}>
      <GenieChat alias="demo" />
    </div>
  );
}

The alias prop must match a key in the spaces configuration on the server.

useGenieChat hook

For custom chat UIs, use the useGenieChat hook directly:

import { useGenieChat } from "@databricks/appkit-ui/react";

function CustomChat() {
  const { messages, status, sendMessage, reset } = useGenieChat({
    alias: "demo",
  });

  return (
    <>
      {messages.map((msg) => (
        <div key={msg.id}>{msg.content}</div>
      ))}
      <button onClick={() => sendMessage("Show top customers")}>Ask</button>
      <button onClick={reset}>New conversation</button>
    </>
  );
}

See the GenieChat component reference for the full props API.
